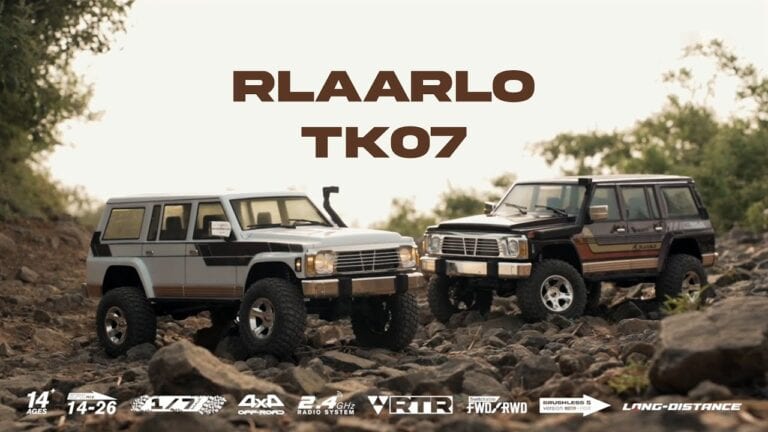

See it in Action: Rlaarlo TK07 RTR [Video]
If you're in the mood for a larger-scale R/C trail truck to take on a summertime adventure, Rlaarlo's TK07 offers a blend of features and classic off-roader style to give fans of trail-focused R/C adventures a solid rig to wheel.
Built on their 1/7-scale crawler platform, the TK07 is packed with driver-focused features including an aluminum chassis frame, two-speed transmission, multiple drive modes, and the option of a brushed or brushless powerplant. If this sounds good, you should see this machine in action to truly get the full effect.
Thankfully, the folks at Rlaarlo have put together a few action clips to demonstrate the features and drivability of their newest rig:
Rlaarlo TK07 Specs:
| VERSIONS | BRUSHED RTR | BRUSHLESS RTR |
|---|---|---|
| Livery SKU | TK07W-BR / TK07G-BR / TK07P-BR (White/Green/Brown) | TK07W-BS / TK07G-BS / TK07P-BS (White/Green/Brown) |
| Scale | 1/7 | 1/7 |
| Series | TK07 | TK07 |
| Car Body | 1.5mm PC | 1.5mm PC |
| Body Clip | Flip-Up Quick-Release Structure | Flip-Up Quick-Release Structure |
| Light System | Full Car Linkage Lighting | Full Car Linkage Lighting |
| Drive System | Four-Wheel Drive with Differential Lock | Four-Wheel Drive with Differential Lock |
| Wheelbase | 428mm | 428mm |
| Speed | 6-12KM/H | 14-26KM/H |
| Dimensions | Length: 720mm Width: 312mm Height: 295mm | Length: 720mm Width: 312mm Height: 295mm |
| Approach Angle | 52° | 52° |
| Departure Angle | 37° | 37° |
| Ground Clearance | 90mm | 90mm |
| Curb Weight | 8KG | 8KG |
| ESC | Brushed 140A | Brushless 140A (Support App Parameter Tuning) |
| Motor | Brushed Motor 5280 12500 Revolutions Per Minute | Brushless 4282-2600KV |
| Transmitter | 2.4GHz 10-Channel Transmitter (Range up to 350 meters) | 2.4GHz 10-Channel Transmitter (Range up to 350 meters) |
| Support Voltage | 7.4V | 7.4V |
| Battery Voltage | Brushed 2-3S | Brushless 2-4S |
| Battery Size | 164*49mm | 164*49mm |
| Steering Servo | 40KG Servo | 45KG Brushless Servo (Waterproof) |
| Shift Servo | 25g Servo | 25g Servo |
| Automobile Beam | 6mm Thick High-Strength CNC Beam | 6mm Thick High-Strength CNC Beam |
| Tire | 135mm*48mm Tire | 135mm*48mm Tire |
| Wheel Hub | 2.6-Inch Wheel Hub, Electroplated Outer Ring (Inner Ring and Inner Pressure Ring are Nylon) | 2.6-Inch Wheel Hub, Electroplated Outer Ring (Inner Ring and Inner Pressure Ring are Nylon) |
| Connecting Rod | 8mm Stainless Pull Rod | 8mm Stainless Pull Rod |
| Servo Connecting Rod | Damping Servo Linkage | Damping Servo Linkage |
| Servo Fixed Seat | Black Nylon Servo Mount | Black Nylon Servo Mount |
| Shock Absorber | Height Adjustable Damper | Height Adjustable Damper |
| Shock Absorber Size | Maximum Length 131mm, Pitch 120mm, Compressed Hole Spacing 80mm, Maximum Outer Diameter 23.5mm, Shock Absorber Diameter 15.8mm | Maximum Length 131mm, Pitch 120mm, Compressed Hole Spacing 80mm, Maximum Outer Diameter 23.5mm, Shock Absorber Diameter 15.8mm |
| Shock Spring | 19mm Inner Diameter, 89mm Long (13 Turns), Wire Diameter 1.4mm | 19mm Inner Diameter, 89mm Long (13 Turns), Wire Diameter 1.4mm |
| Gearbox | High and Low Speed Switchable; Front Wheel Drive, Rear Wheel Drive, Four-Wheel Drive Switchable | High and Low Speed Switchable; Front Wheel Drive, Rear Wheel Drive, Four-Wheel Drive Switchable |
| Front and Rear Axle Differential Lock | The Front and Rear Axle Differential can be Independently Switched | The Front and Rear Axle Differential can be Independently Switched |
| Driveshaft | All Metal Material, Universal Joint | All Metal Material, Universal Joint |
| Pinion Gear | 15T (Steel Gear) | 15T (Steel Gear) |
| Deceleration Gear | 35T (Steel Gear) | 35T (Steel Gear) |
| Secondary Reduction Gear Ratio | 16T/30T (Steel Gear) | 16T/30T (Steel Gear) |
| High Speed Gear Ratio | 20T/20T (Steel Gear) | 20T/20T (Steel Gear) |
| Low Speed Gear Ratio | 14T/26T (Steel Gear) | 14T/26T (Steel Gear) |
| Differential Driven Gear | 36T (Powder Metallurgy) | 36T (Chrome Steel Spiral Teeth) |
| Differential Driving Gear | 11T (Powder Metallurgy) | 11T (Chrome Steel Spiral Teeth) |
| Gate Bridge Reduction Gear | 15T/30T | 15T/30T |
| Hexagonal Connector | Aluminum Alloy Hexagonal Connector 17mm | Aluminum Alloy Hexagonal Connector 17mm |
The Rlaarlo TK07 brushed version is priced at $599.99, and the TK07 brushless version is priced at $699.99. Both models are available direct from Rlaarlo at rlaarlo.com.
Image credit: Rlaarlo
