Rlaarlo SLEVO-07 Mitsubishi EVO R/C Rally Car
Who's ready to kick up some dust with a new R/C rally car? Rlaarlo has released its latest go-fast machine, the SLEVO-07 Mitsubishi EVO R/C Rally Car, which offers scale visual detail in a 1/7-scale, performance-ready package.

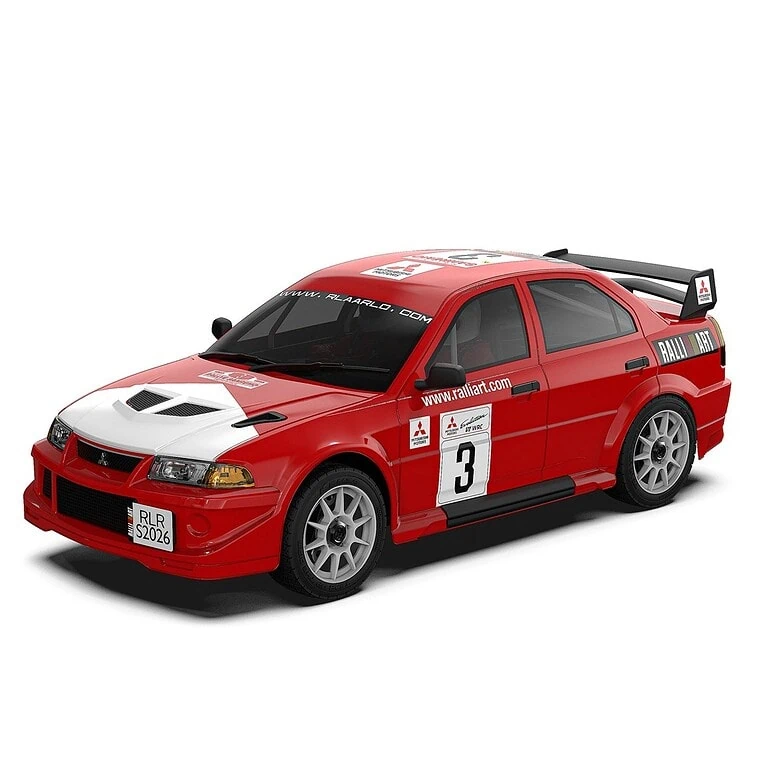

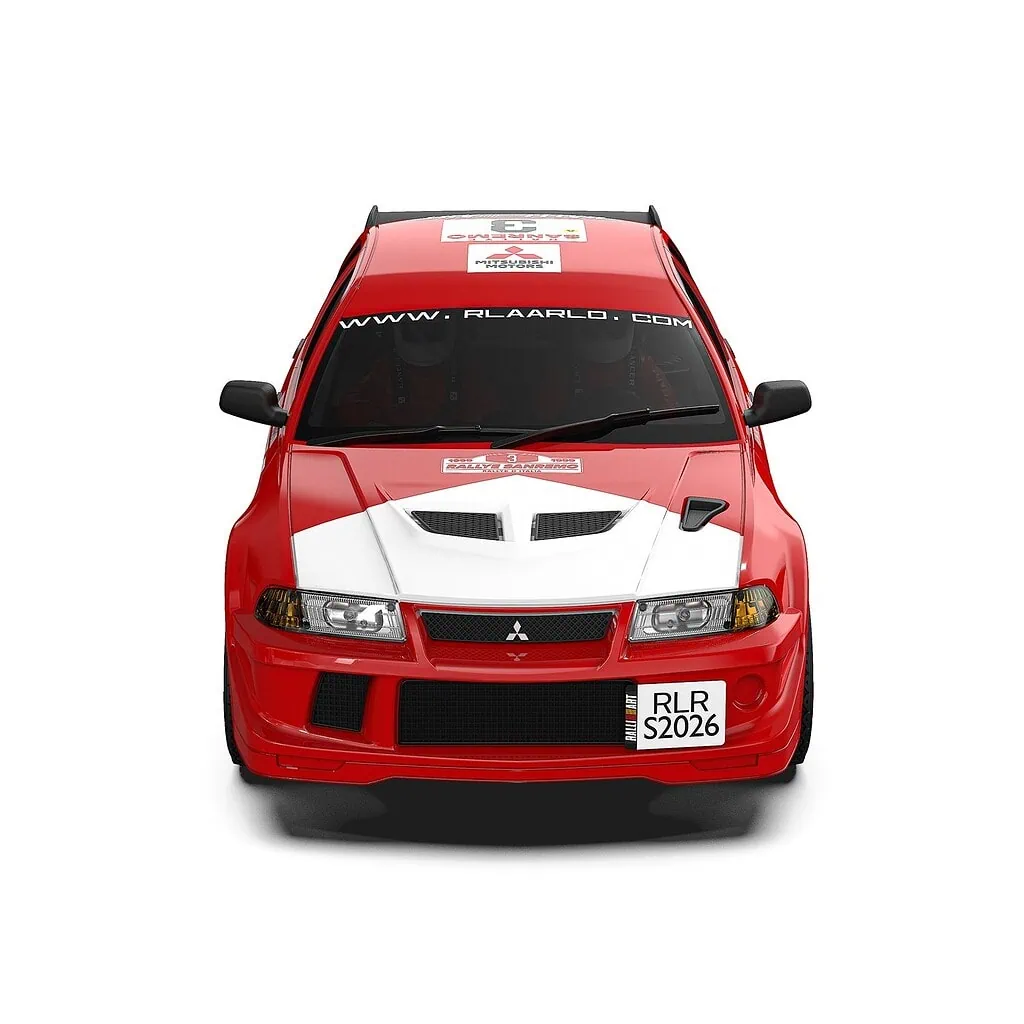

Starting with the visual aspects of this car, Rlaarlo has left no detail unnoticed as the SLEVO-07 is outfitted with several 1:1 Mitsubishi EVO-inspired features like a roll cage, air vents, a dual-layer rear wing, aero-focused body panels, a mesh grille, and a detailed interior tray. On top of all that, this car is equipped with front and rear LED lights to let you keep the fun rolling long after the sun goes down.
With its clipless body mounting system, the SLEVO-07 maintains a stunning

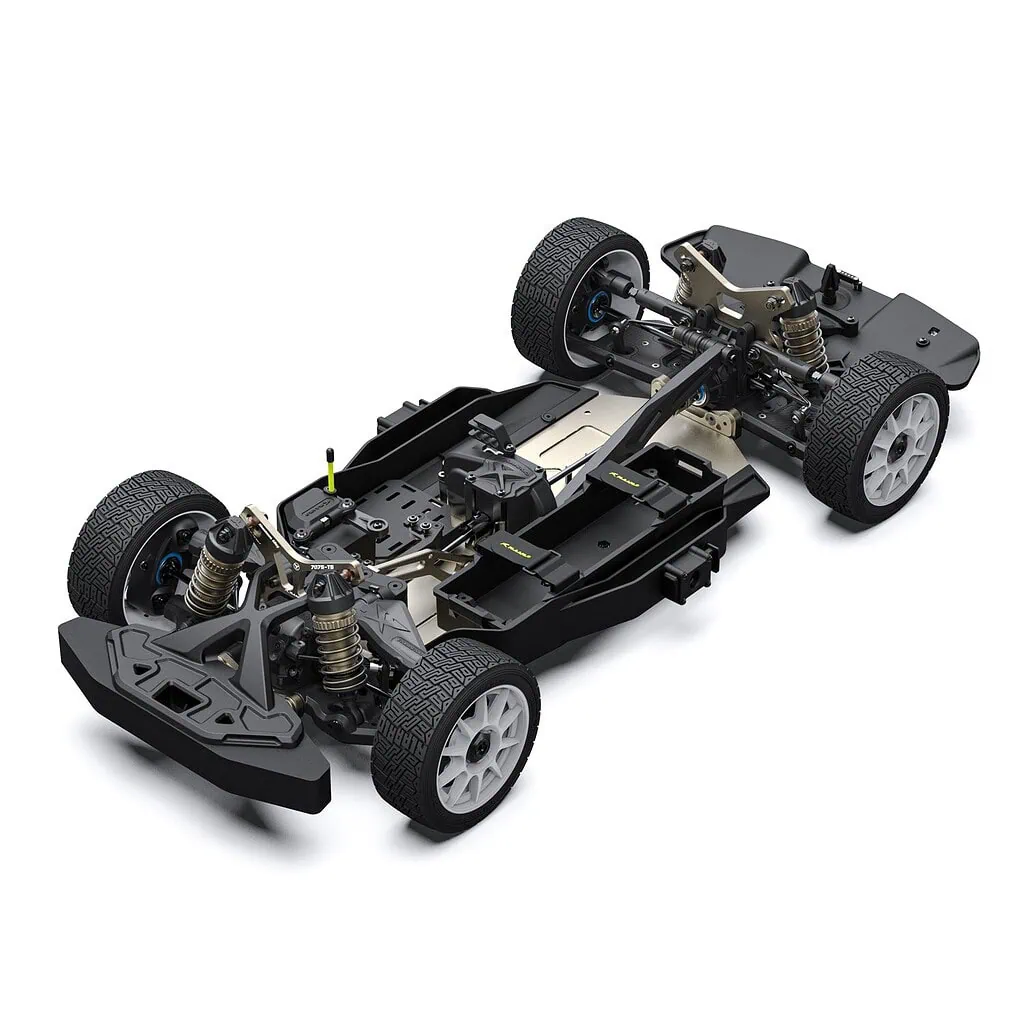

Under the body, the SLEVO-07 features a robust chassis design that includes an aluminum chassis tray and durable aluminum components, plus several easy-to-access and easy-to-maintain chassis segments such as quick-release shock springs, a quick-access gearbox, and a quick-release center diff and upper suspension arms.
The SLEVO-07 Mitsubishi EVO is set up with a rear-mounted motor, however, with a few adjustments, you can convert it to a front-mounted setup and change the weight distribution and handling characteristics of this car.
This 1/7-scale rally car is powered by a 2050kv brushless motor that's paired with a 180A sensorless, brushless ESC. That power combo should provide plenty of power for this larger-scale rally car.
Specs:
- Color: Red / Yellow / White
- Tire Size: 100 mm (Diameter) x 38 mm (Width)
- Car Body: 1.5 mm pre-painted PC body
- Body Clip: Clipless quick-release structure with reinforced side latches
- Battery Tray: Single battery tray 189 x 49 mm / dual battery tray 140 x 48 mm, inner dimensions, nylon
- Speed: 70+ km/h
- Dimensions: Length 646 mm, width 272 mm, height 215 mm
- Wheel Track: 240 mm
- Wheelbase: 374 mm
- Drive System: 4WD
- Transmission Method: Split transmission of central differential
- Realistic Parts: Front fascia accessory, hood intake grilles, main front grille, rear license plate, rearview mirrors, door handles, windshield wipers, rear wing, front and rear independent light buckets, side skirts, rear diffuser, exhaust pipes, front bumper foam, spotlight (OP)
- Light: Full car linkage lighting
- Ground Clearance: 25 mm
- Vehicle Weight: Approximately 4.2 kg
- ESC: 180A sensorless brushless ESC
- Motor: 4274-2050KV sensorless brushless motor
- Cooling Fan & Heat Sink: Yes
- Battery: —
- Servo: 45 kg coreless servo
- Transmitter: 2.4 GHz 6-channel T-rexRC transmitter with gyroscope, range up to 350 meters
- Support Voltage: 2–6S
- Pinion Gear: M1-17T (40CrMo heat treated to HRC55–60)
- Central Spur Gear: M1-46T (40CrMo steel, hardened treatment)
- Differential Ring Gear: M1-43T (40CrMo steel, hardened treatment)
- Differential Pinion Gear: M1-12T (40CrMo steel, hardened treatment)
- Differential Bevel Gear Set: Differential large bevel gear 18T / differential small bevel gear 9T, iron-based alloy powder, anti-rust surface treatment
- Shock Tower: 5 mm 7075-T6 aviation-grade aluminum alloy, hard anodized
- Chassis: 3 mm 7075-T6 aviation-grade aluminum alloy, hard anodized
- Front and Rear Differentials: Powder metallurgy planetary gears, 10000 cSt
- Center Differential: 20000# silicone oil
- Shock Absorber: 16 mm 7075-T6 big bore metal oil-filled shocks (1500 cSt)
- Motor Mount: Aluminum alloy, supports 42-series motors, features an adjustable slider
- Rear Axle: Hardened 40Cr steel
- Central Drive Shaft: Center dogbone (hardened 40Cr steel)
- Tie Rod (Full Set): 1144 carbon steel
- Outdrive Cups (Full Set): 40Cr steel
- Pivot Balls (Full Set): 1215 carbon steel
- Steering Structure: Pivot ball suspension (PBS) steering
- Suspension Arm: Pivot ball structure, nylon double wishbone arms with carbon fiber reinforcement
- Steering Linkage Rod: 7075-T6 aviation-grade aluminum alloy, hard anodized
The SLEVO-07 Mitsubishi EVO Rally Car is priced at $599.99 for the RTR version and $369.99 for the chassis kit. Learn more about both and add one to your collection at rlaarlo.com.
Image credit: Rlaarlo
