RadioMaster TX16S MK3 ELRS Radio Transmitter
It's a new year, why not treat yourself (and your R/C collection) to a new radio? RadioMaster has announced the release of its latest ELRS controller, the TX16S MK3. Designed for radio-controlled aircraft (planes, helicopters, and quadcopters), this next-gen TX16S transmitter features a blend of analog controls and a large, crisp touchscreen display for a clear menu display, even in sunny conditions.

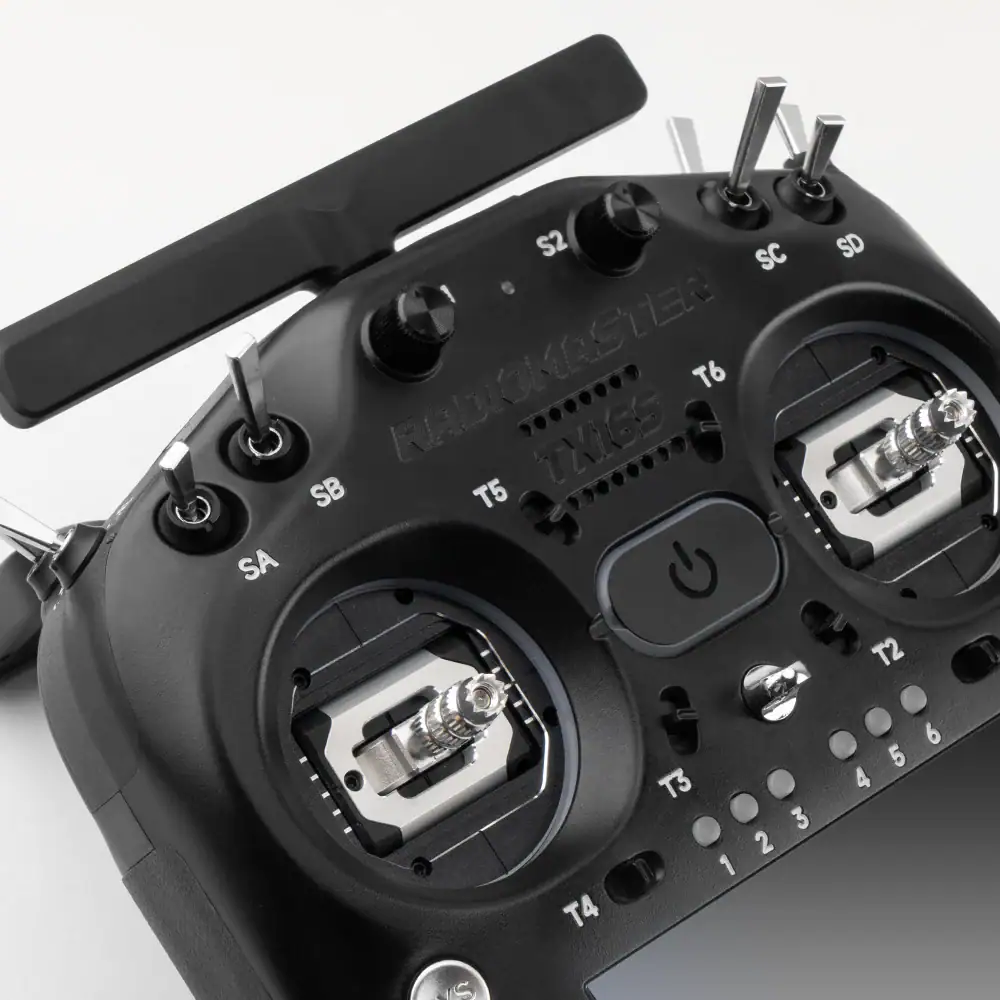

The TX16S MK3 also sports aluminum buttons and knobs, plus aluminum Hall-Effect gimbals for improved durability and ergonomics. This controller also features foldable antennas for compact storage and transportation.
On the electronics front, the TX16S MK3 includes an STM32 H7 processor, a dual-band Gemini 2.4GHz and Sub-G 900MHz ExpressLRS internal RF module, and runs EdgeTX.

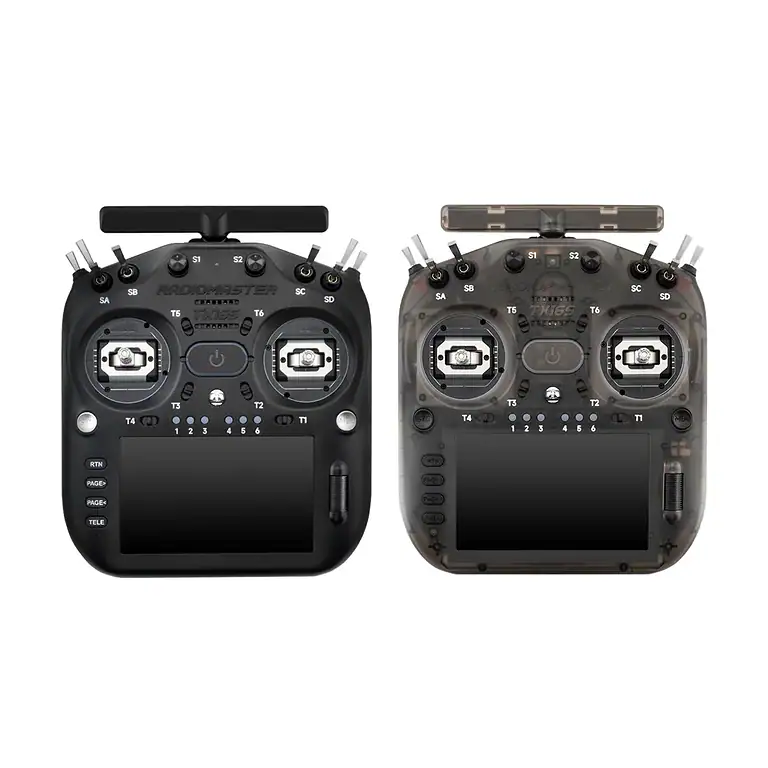

Two body colors are available (black and transparent charcoal), and the gimbal light rings feature programmable LED lights for further customization.
Specs:
- Item: TX16S MK3 Radio Controller
- Color: Black / Transparent Charcoal
- Voltage Range: 6.6 - 8.4V DC
- Working Current: 1.10A (at max RF output power)
- Radio Firmware: EdgeTX (require 3.0.0 or higher)
- Built-in RF Module: ExpressLRS 2 x LR1121
- Frequency: ISM 2.4GHz and Sub-G 900MHz
- Number of Channels: Up to 16ch
- Gimbal: V6 Hall sensor gimbals (standard)
- MicroSD Card Slot: Yes (card not included)
- Internal Storage: Integrated 4GB of onboard flash memory
- Display: 5-inch IPS touchscreen (800 X 480 resolution)
- Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included)
- Upgrade Method: USB / EdgeTX Companion PC software
- Module Bay: JR-compatible module bay for additional modules
- Dimensions: 20017888mm
- Weight: 813g (without battery)
The TX16S MK3 Radio Transmitter is $199.99 and is available for pre-order through RadioMaster at radiomasterrc.com.
Image credit: RadioMaster
