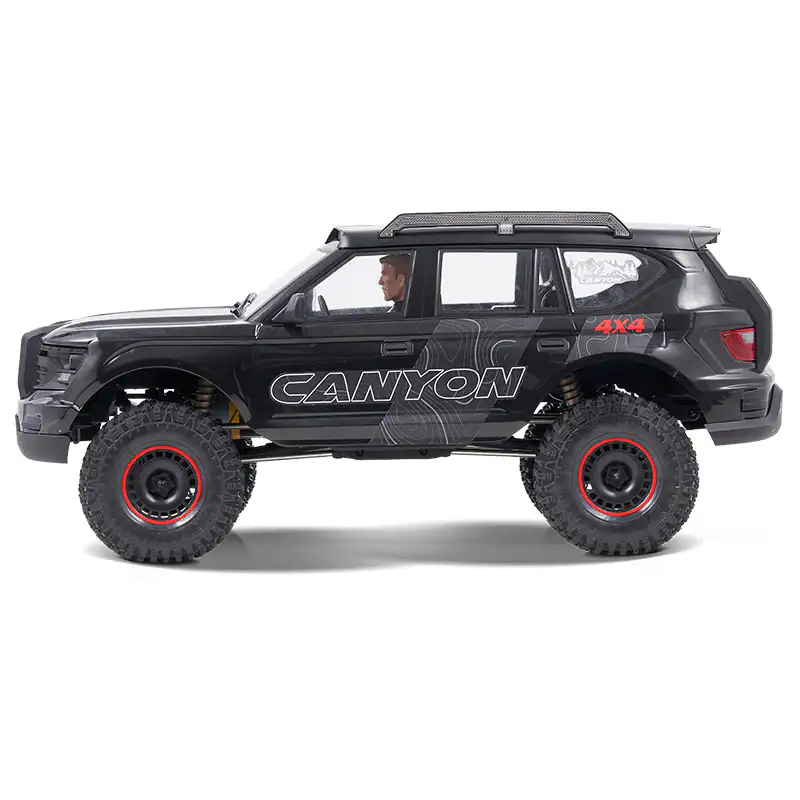

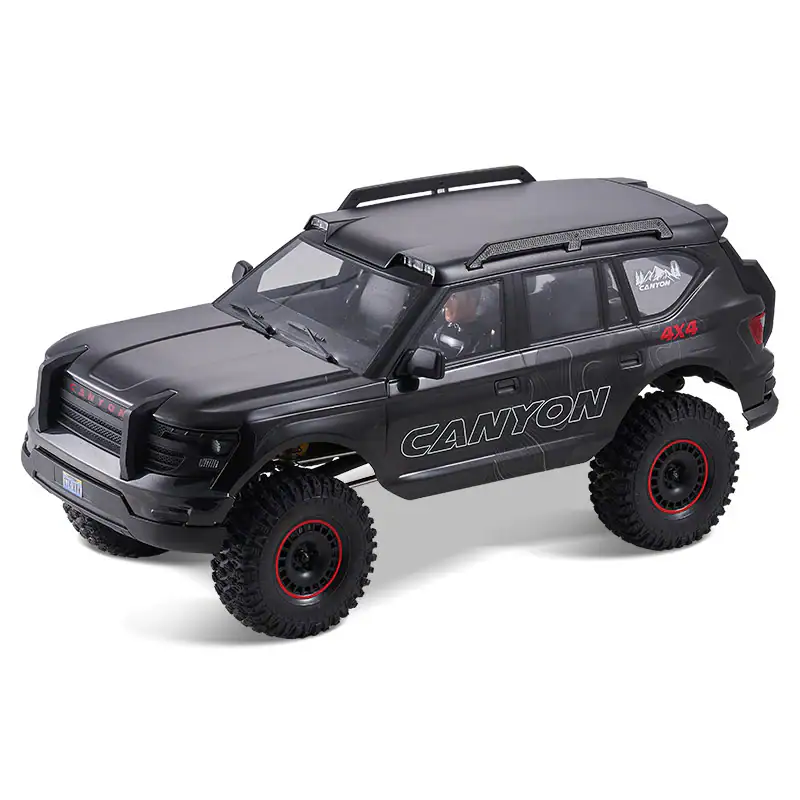

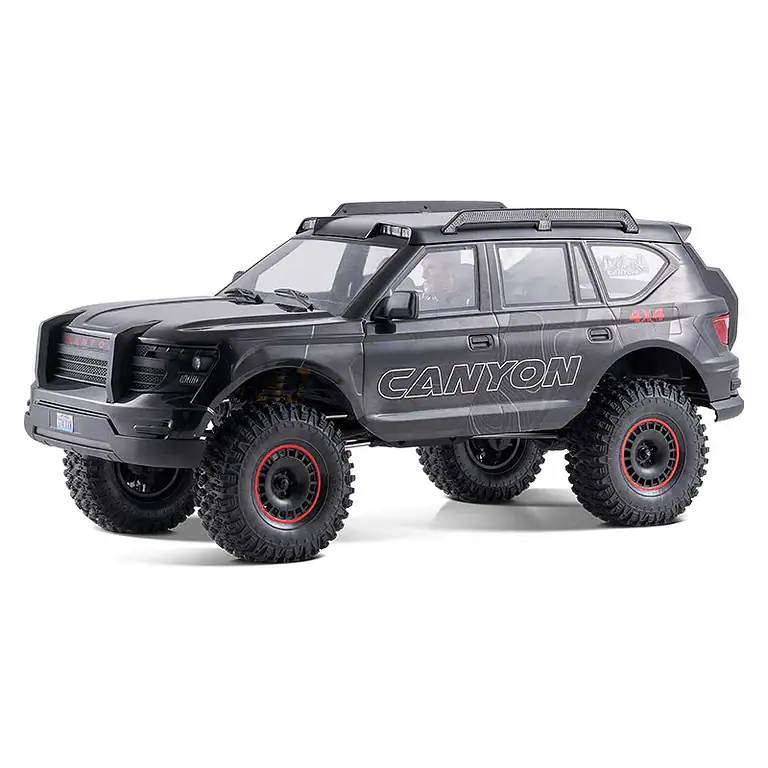

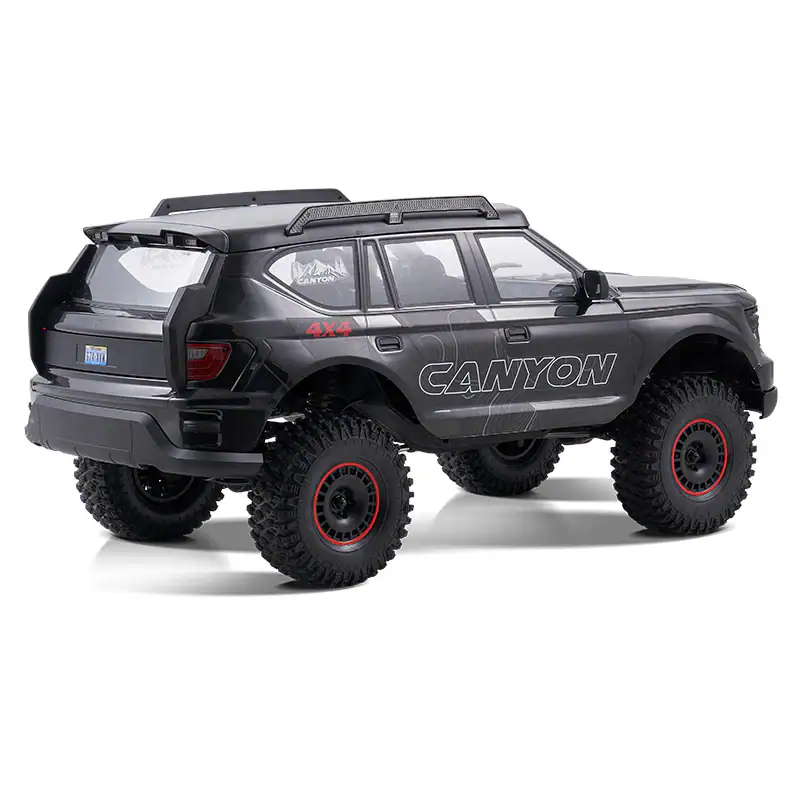

FMS Canyon RS Trail Truck
FMS has released its latest 1/10-scale R/C off-roader, the Canyon RS. Featuring a modern, FMS-created body style and low center-of-gravity chassis, this "standard scale" trail truck looks like a capable and fun outdoor cruiser.
Branching out from its FCX10 lineup, the Canyon features a new LCG chassis design that's designed to keep this rig planted under the most extreme conditions. The motor sits lower than other models, and various design considerations help maintain a low center of gravity for this truck.
More than just an LCG chassis wrapped in a sleek, modern body, the Canyon RS also includes dig functionality, a two-speed transmission, locking front and rear diffs, oil-filled metal shocks, metal gears (with a plastic spur gear), a complete set of ball bearings, and portal axles.
Speaking of the body, it looks like a blend of modern SUV design with shades of Ford Explorer and similarly designed 1:1 models. The body features a quick-release mounting system and magnet-connected LED lights for easy body removal and attachment.
Since this is an RS model, you will need to supply your own battery and battery charger before you can take the Canyon out on the trail.
Specs:
- Transmitter: MG11
- Receiver: FS-R11P-BS
- Light Control: DB01
- Recommend Battery: 2-3S
- Motor Type: 550 Brushed Motor 32T
- Motor Gear Pinion: 14T
- Motor Gear Pitch: M0.6
- Spur Gear Pinion: 33T
- Spur Gear Pitch: M0.6
- ESC: Hobbywing 1060
- Steering Servo: 25KG Steering Servo*1
- Shift/Differential Servo: High/low speed servo_1, Front/Rear Diff Servo_2, DIG servo*1
- Product Size: 580_260_256mm
- Wheelbase: 325mm
- Tread: 208mm
- Approach Angle: 38°
- Departure Angle: 39.5°
- Breakover Angle: 45°
- Ground Clearance: 60mm
- Steering Type: 2WS
- Maximum Steering Angle: 42°
- Maximum Climbing Angle: 40°
- Tire Size (Diameter & Width): 116*42mm
- Wheelhub Size (Diameter & Width): 56*32mm
- Wheelhub Adaptor Size: 12mm
- Bearing: 36pcs
- Drive System: 4WD
- Waterproof Class: Splash-proof
- Battery Compartment Size: 156*48mm
- Maximum Speed: 15KM/h
- Maximum Control Distance: 150m
Priced at $449.99, the Canyon RS is available at fmshobby.com.
Image credit: FMS
