FMS 5.8GHz Analog FPV Set
By: Tim Gluth
The team at FMS has released a new product to help you enjoy your R/C experience on a whole new level. The FMS 5.8GHz Analog FPV Set will put you in the cockpit or behind the wheel of your favorite R/C machines and give you a whole new way to enjoy the hobby.

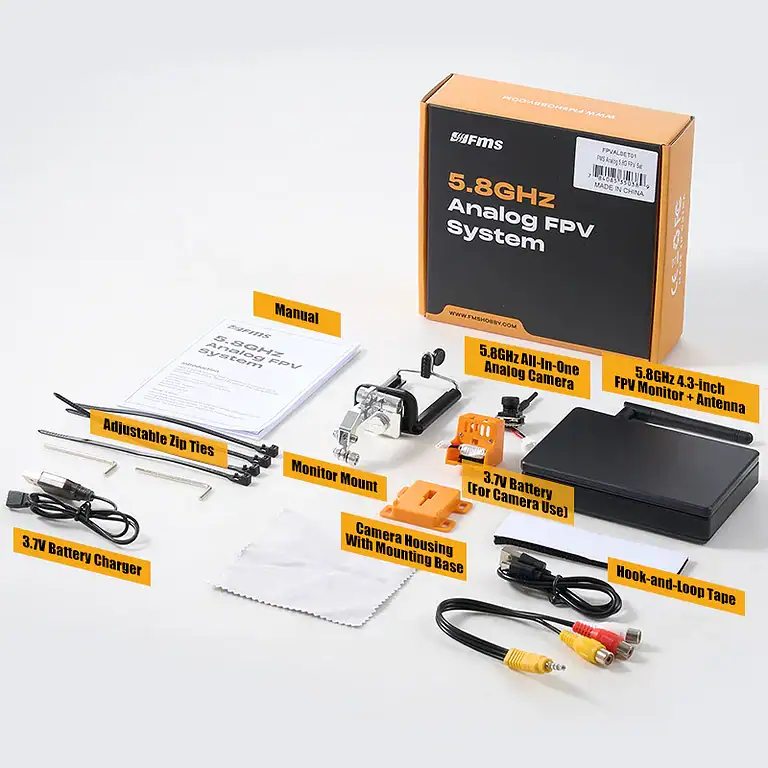

Designed to work with just about any radio-controlled car, truck, or aircraft, this FPV Set includes everything that you'll need to enjoy real-time first-person video. The entire package includes an analog, 5.8GHz FPV camera, a 4.3" FPV monitor and antenna, a 3.7V battery for the camera, mounting zip ties, and more.
FPV Monitor Specs:
- Screen Size: 4.3 inches
- Resolution: 480×272 pixels
- Aspect Ratio: 16:9
- Brightness: 500 cd/m²
- Input Format: NTSC/PAL Auto-Switch
- AV Interface: 3.5mm analog video
- Operating Voltage: 5V DC
- Charging Port: Micro-USB 5V/2A
- Battery Capacity: 3.7V 2500mAh Li-ion
- Frequency Range: 4990--5945 MHz
- Channels: 56 channels
- Sensitivity: -90dBm
- Antenna Connector: RP-SMA (inner pin)
- Dimensions: 123×85×26 mm
- OSD Display: Signal strength / Battery / CH
- Auto-Scan: One-button frequency search
Camera Specs:
- Antenna Type: Copper tube
- Working Current: 220mA
- Voltage Range: 2.5--5.5V (5V typ.)
- Dimensions: 13.5×15.9×17.2mm
- Weight: 3.6g
- RF Power: 25mW
- Channels: 48CH
- Camera: 120° FOV, 600TVL
- Lens: f=1.4mm
- Video Standard: PAL
This 5.8GHz Analog FPV Set is priced at $119.99 and is available through FMS and its dealers. Learn more about this FPV setup at fmshobby.com.
Where to Buy the FMS 5.8G Analog FPV Set:
- FMS - $119.99 (Save $5 with coupon code RCNEWB)
- Fair RC - $119.99
Image credit: FMS
